Communication module

Overview

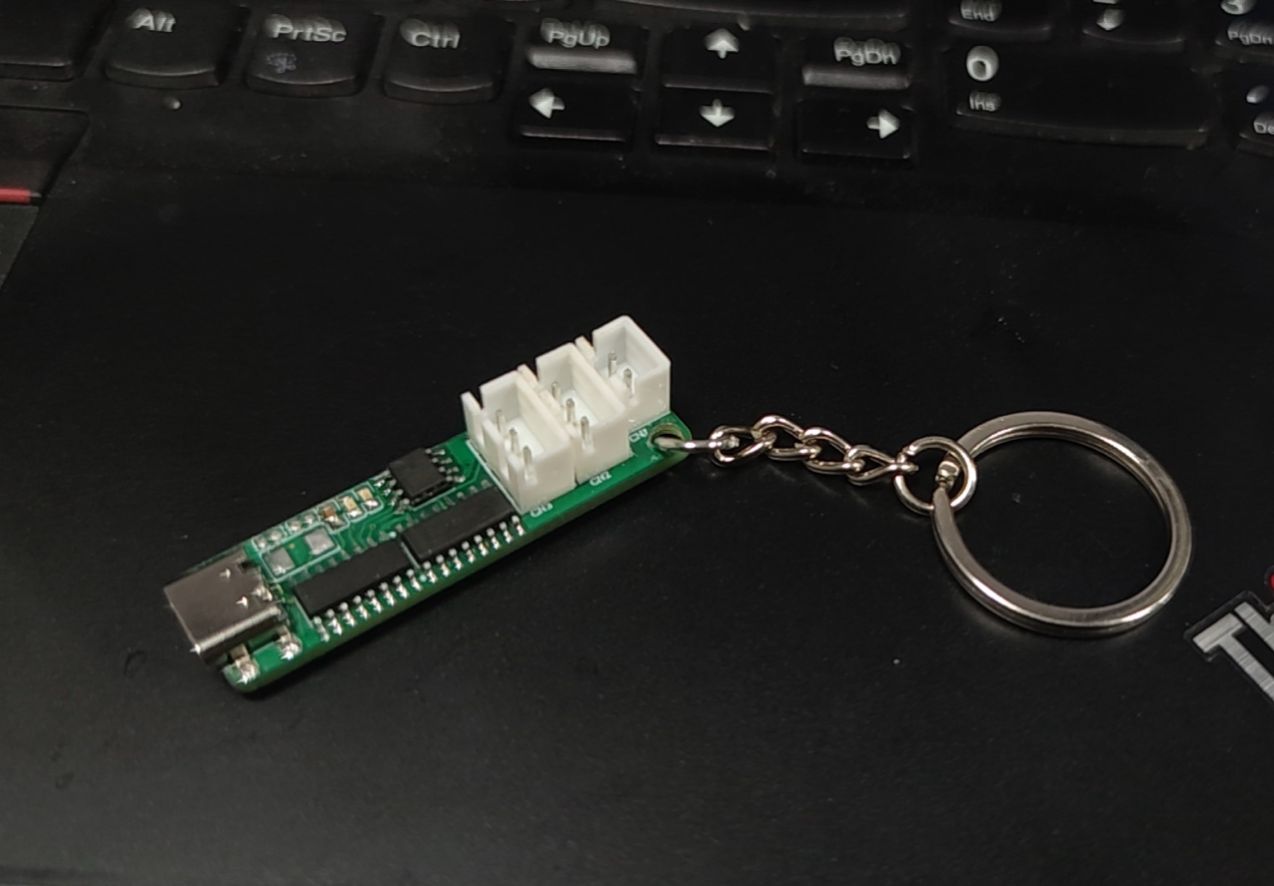

type-C interface, supports reversible insertion, USB to TTL/232/485

The USB to serial port uses CH340B, which has a 485 enable terminal control pin, and the crystal oscillator circuit can be removed.

TTL to 232 uses MAX3232.

TTL to 485 uses SP3481.

Export TTL interface.

Few peripheral circuits.

The on-board mounting holes can be connected with key chains, hand straps, etc. for easy portability and storage.

The module is ultra-small in size, delicate yet elegant.

It is recommended to use blue for making boards
