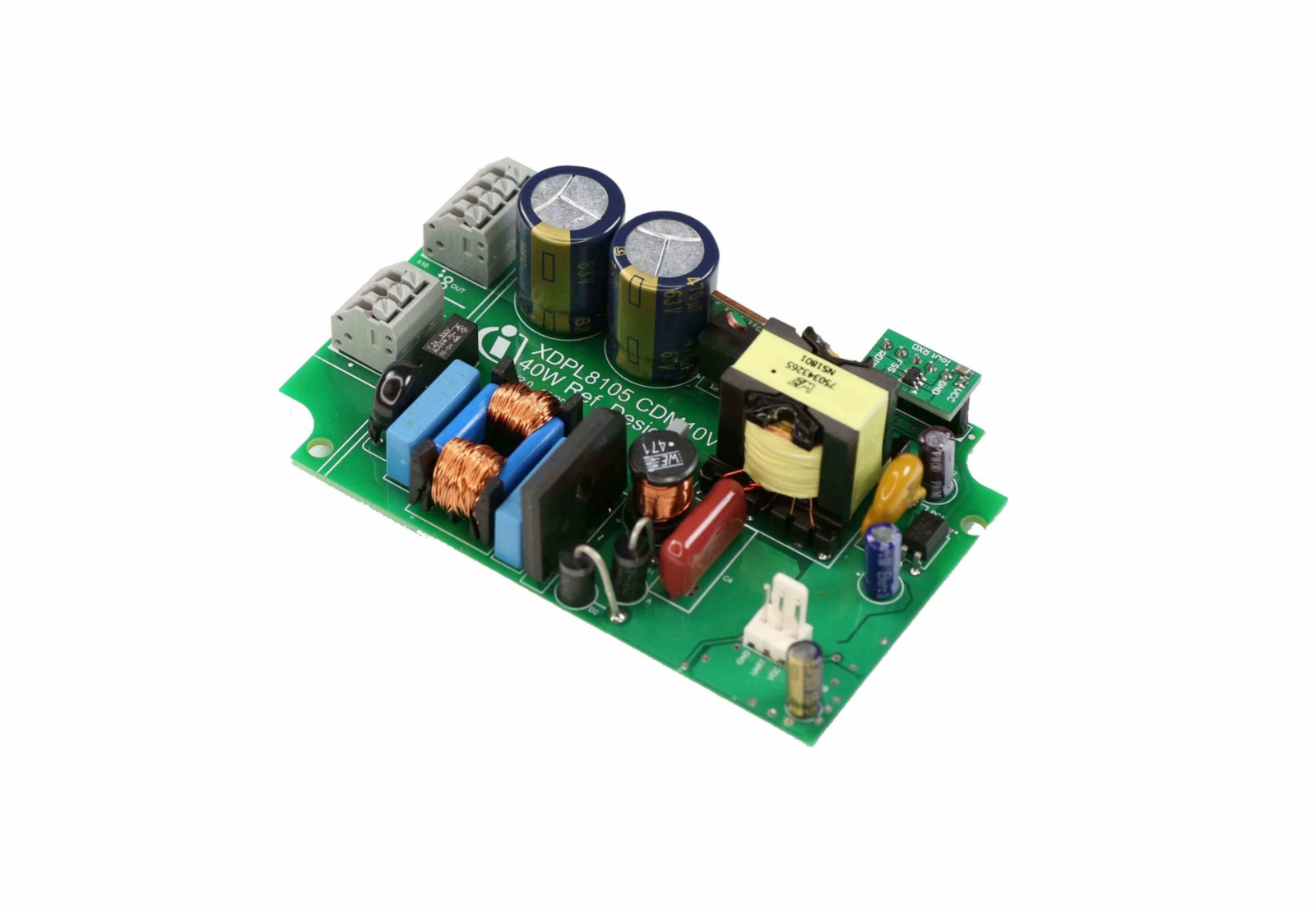

XDPL8105 40W Reference Design

REF-XDPL8105-CDM10V

Overview

The XDPL8105 40W reference design is a digital ground configured LED driver with a universal input of 90-305 V AC, a wide output load range of 16-45VDC and isolated 0-10V dimming based on a CDM10V dimming IC. The power stage uses IPD80R1K4CE, a 900mOhm CoolMOS™ CE power MOSFET.

Feature description

Single stage high power factor flyback topology.
Input voltage 90-305 V _AC
Digitally configurable output current
Isolated 0-10V dimming interface

Advantage

Low BoM saves up to 40 components due to primary side control and high level of integration
Smooth operation with extended dimming capabilities
Simplify isolated 0-10V dimming with configurable dimming curve
Programmable LED driver

Potential applications

LED driver
LED module
