65 W USB-PD dual-port reference design using EZ-PD™ PAG1S+P and CCG7D

VD_USB_PAG_65W_DUAL

Overview

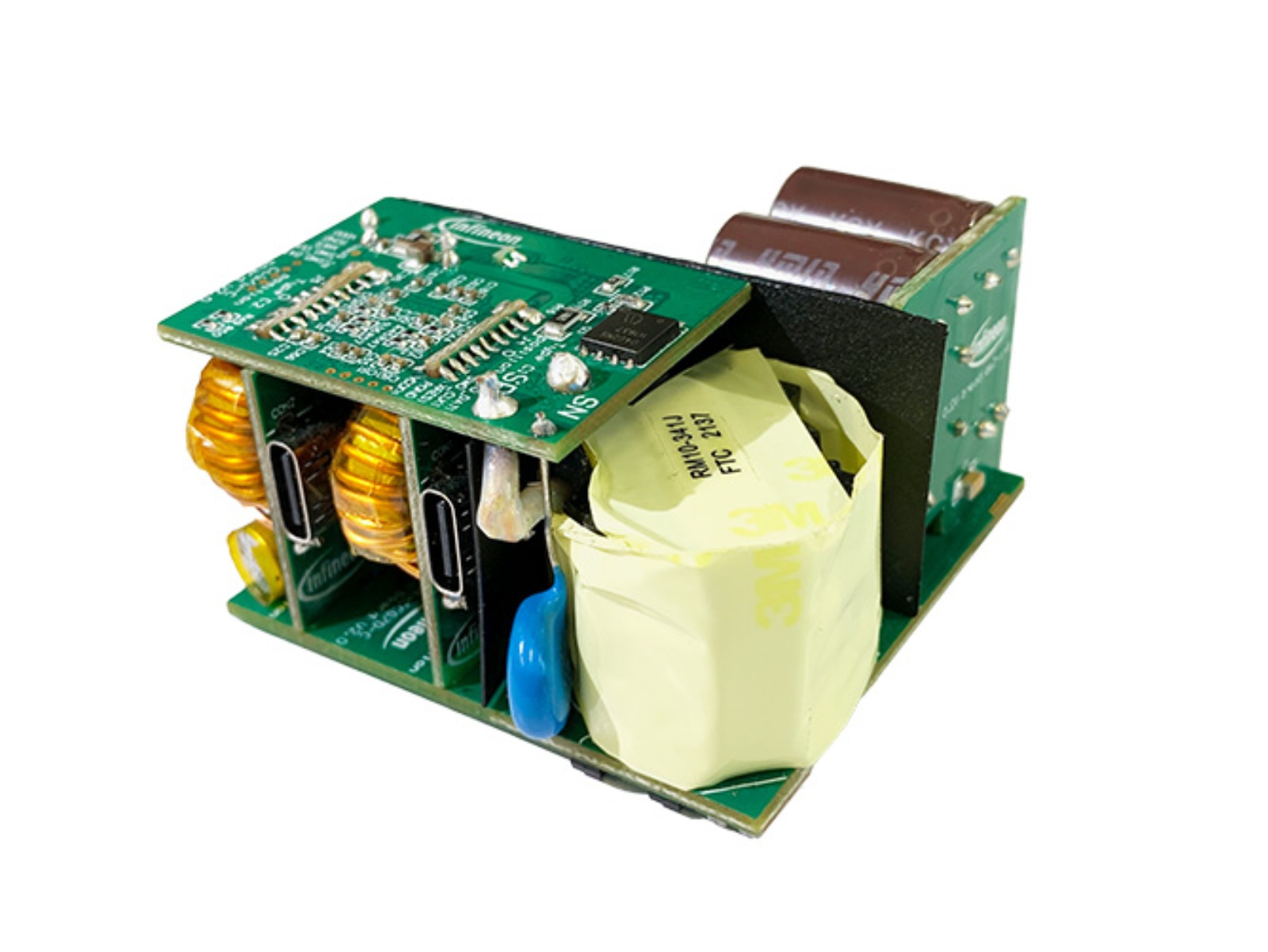

This 65 W USB-PD type-C PPS charger reference design uses Infineon's EZ-PD™ PAG1S and PAG1P P controllers, EZ-PD™ CCG7D PD controller, and Infineon's high-voltage CoolMOS™ superjunction MOSFETs. The solution complies with DoE Level 6 international energy efficiency standards and passes conducted emissions testing in accordance with the EN 55032 B standard.

Feature description

Input voltage: 100 V _AC ~ 240 V _AC
Input frequency: 47-63 Hz
Output power: 65 W
Efficiency: 91.01% (at 230 V _AC – 50 Hz, 20 V-3.25 A)
Power density: 14.12 W/in³
Dimensions: 51x51x29 mm

Potential applications

USB-C charger

Design Files

Engineering Report 65W USB-PD Dual C Power Adapter Solution (PAG1P-A3/PAG1S-A1+CCG7D-C) Test Report

Documentation

Important safety and operating instructions
