650 V 400 A six-cell automotive qualified IGBT module

FS400R07A1E3

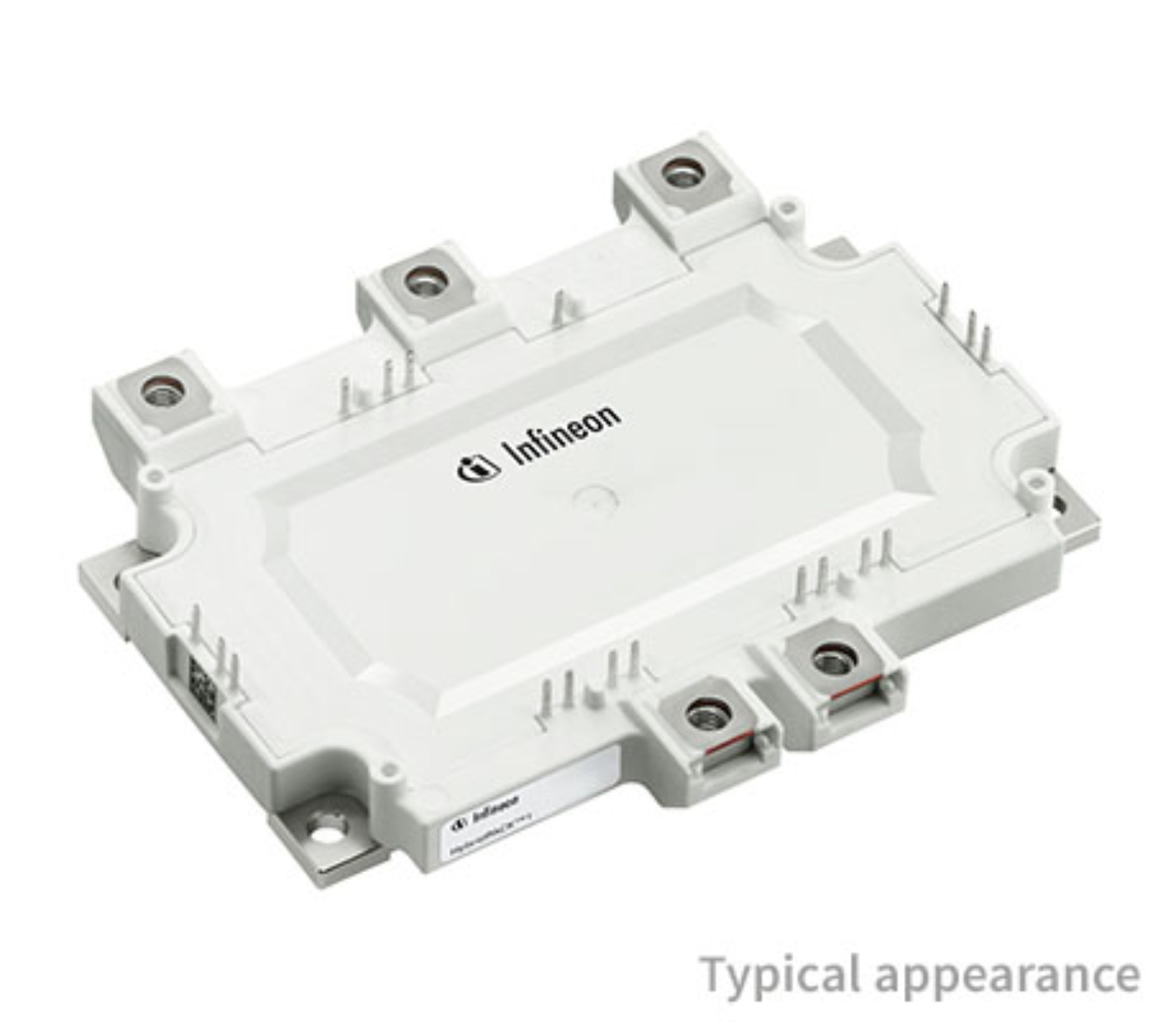

Overview

The HybridPACK™ 1 is an automotive qualified power module designed for hybrid electric vehicle (HEV) applications in the 20–30kW power range. Features Complete three-phase six-cell in a compact module design with NTC 3rd generation 650V trench field stop IGBTs with matching 3rd generation emitter controlled 650V diodes Extended temperature range - Tjop = 150°C - Tjmax = 175°C Scalable power ratings Rated current up to 400A DC enhanced wire bonding TC Rugged alumina ceramic for automotive applications Copper substrate Fully qualified for automotive applications Benefits High cost-effective system solution Low power losses and higher efficiency High reliability Compact design HYBRID KIT1+ reference design available Potential Applications Hybrid Electrical Vehicles

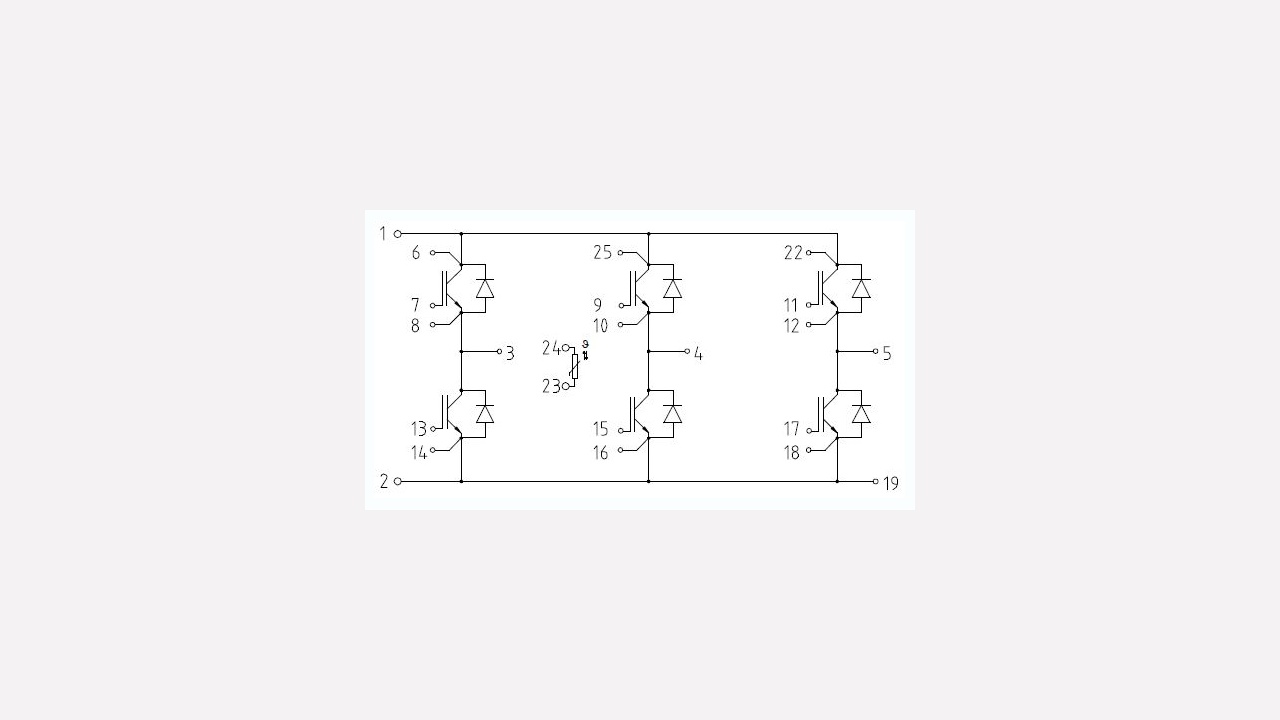

Blockdiagram
