Power port adapter board with several commonly used ports

Overview

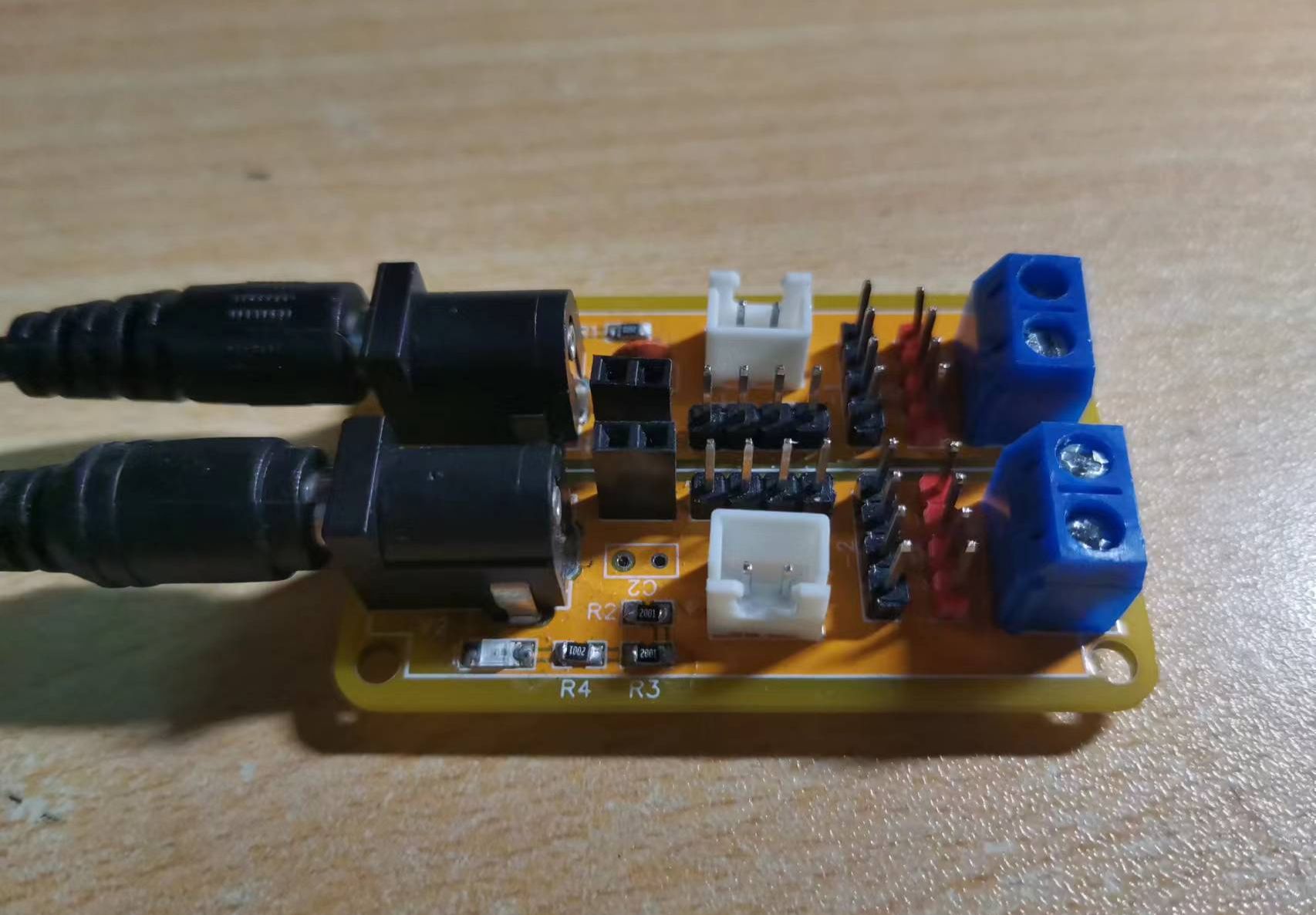

Power port adapter board with several commonly used ports, divided into upper and lower channels, each with DC5.5mm interface, KF301-5.0-2P, positive and negative 4Pin pin headers, positive and negative 2pin female headers, XH2.54-2P terminal . There are positive and negative 2-pin headers in the middle for connecting the upper and lower circuits as positive and negative power supplies. Among them, the area of the lower road is slightly larger and the current carrying capacity is slightly larger. There is also a RAD-0.1 packaged capacitor for filtering, which is optional. Each has 1206 LED indicators.

BOM download

Schematic_Power port adapter board with several common ports_2022-10-08.pdf

SCH_Power port adapter board with several common ports_2022-10-08.json

Sheet_1_2022-10-08.schdoc

PCB_PCB_Power adapter_2_2022-10-08.pdf

PCB_PCB_Power adapter_2_2022-10-08.json

Gerber_PCB_Power adapter_2_2022-10-08.zip

60977

electronic

Design Files
