Seamlessly stream 4K 30 fps video from external HDMI sources to USB hosts over USB-C

Seamlessly transfer 4K 30 fps video from an external HDMI source to a USB host over USB-C

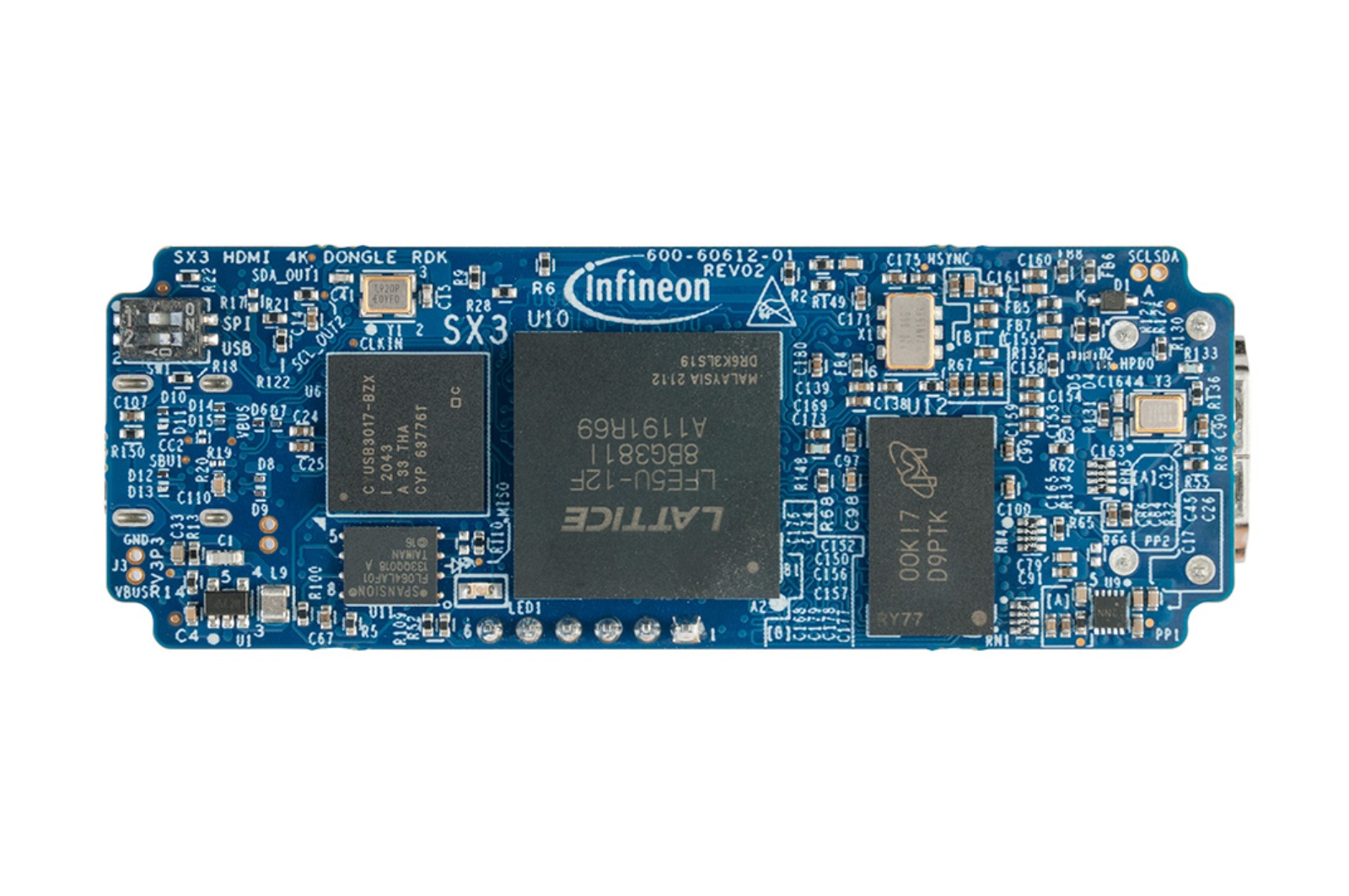

CY-SD4210 EZ-USB™ SX3 HDMI 4K capture solution demonstration kit based on Infineon's SX3 series of configurable SuperSpeed ​​USB controllers. SX3 features a deeply configurable universal interface that supports connection to any type of processor, ASIC, image sensor or field programmable gate array (FPGA). Products easily connect to common industrial interfaces such as synchronous slave FIFOs, asynchronous SRAM, asynchronous and synchronous address data multiplexing interfaces, and image sensor interfaces. This kit allows users to transfer 4K 30 fps video from an external HDMI source to a computer via the USB-C interface.
For more information about this reference design, please contact us here.



Feature Description


4K 30 fps HDMI video directly to computer via USB-C
USB bus-powered operation
Supports HDMI 1.4 b specification




Advantages


Ready-made HDMI to USB conversion solution
Supports both 4K and 1080p
Modular design




Potential applications


Cameras: USB webcams, recording , Industrial, Time of Flight, Surveillance
Video Conferencing System
HDMI/SDI USB Video Capture Card
Medical Imaging Equipment
USB to Low Voltage Differential Signal (LVDS) Camera Interface Board
Test and Measurement Equipment USB Logic Analyzer
USB Oscilloscope
USB Data Logger or Acquisition System



List of components


EZ-USB™ SX3: Configurable SuperSpeed ​​USB Controller (CYUSB3017-BZXI)
TVS DIODE 5.5 V 12 V WLL-2-2 (ESD202-B1-CSP01005)
13V Clamp 3.5 A (8/20µs) Ipp Tvs Diode Surface Mount WLL-2-3 (ESD131-B1-W0201)
Flash - NOR Memory IC 64Mb (8M x 8) SPI - Quad I/O, QPI 8-WSON (5x6) (S25FL064LABNFA010)











ParametricsCY-SD4210 Family USB Peripheral Controller Input Type DC Product Description The CY-SD4210 EZ-USB™ SX3 HDMI 4K Capture Solution Demo Kit is based on the SX3 product family of Infineon's configurable SuperSpeed ​​USB controllers. SX3 has a fully configurable general interface that can interface with any processor, ASIC , image sensor, or field programmable gate array (FPGA). It provides easy and effortless connectivity to popular industry interfaces such as synchronous slave FIFO, asynchronous SRAM, asynchronous and synchronous address data multiplexed interfaces, and image sensor interfaces. This kit enables users to stream video seamlessly from an external HDMI source to USB Host via USB-C. Qualification • TVS DIODE 5.5V 12V WLL-2-2 (ESD202B1CSP01005XTSA1) • 13V Clamp 3.5A (8/20µs) Ipp Tvs Diode Surface Mount WLL-2- 3 (ESD131-B1-W0201)• EZ-USB SX3: Configurable SuperSpeed ​​USB Controller (CYUSB3017-BZXI)• FLASH - NOR Memory IC 64Mb (8M x 8) SPI - Quad I/O, QPI 8-WSON (5x6) ( S25FL064LABNFA010); Industrial Supply Voltage min max 4.5 V 5.5 V Target Application HDMI Video Capture; Consumer; Industrial; Infotainment ParametricsCY-SD4210
