35W Brick Adapter Reference Board

REF-35W ADAPTER

Overview

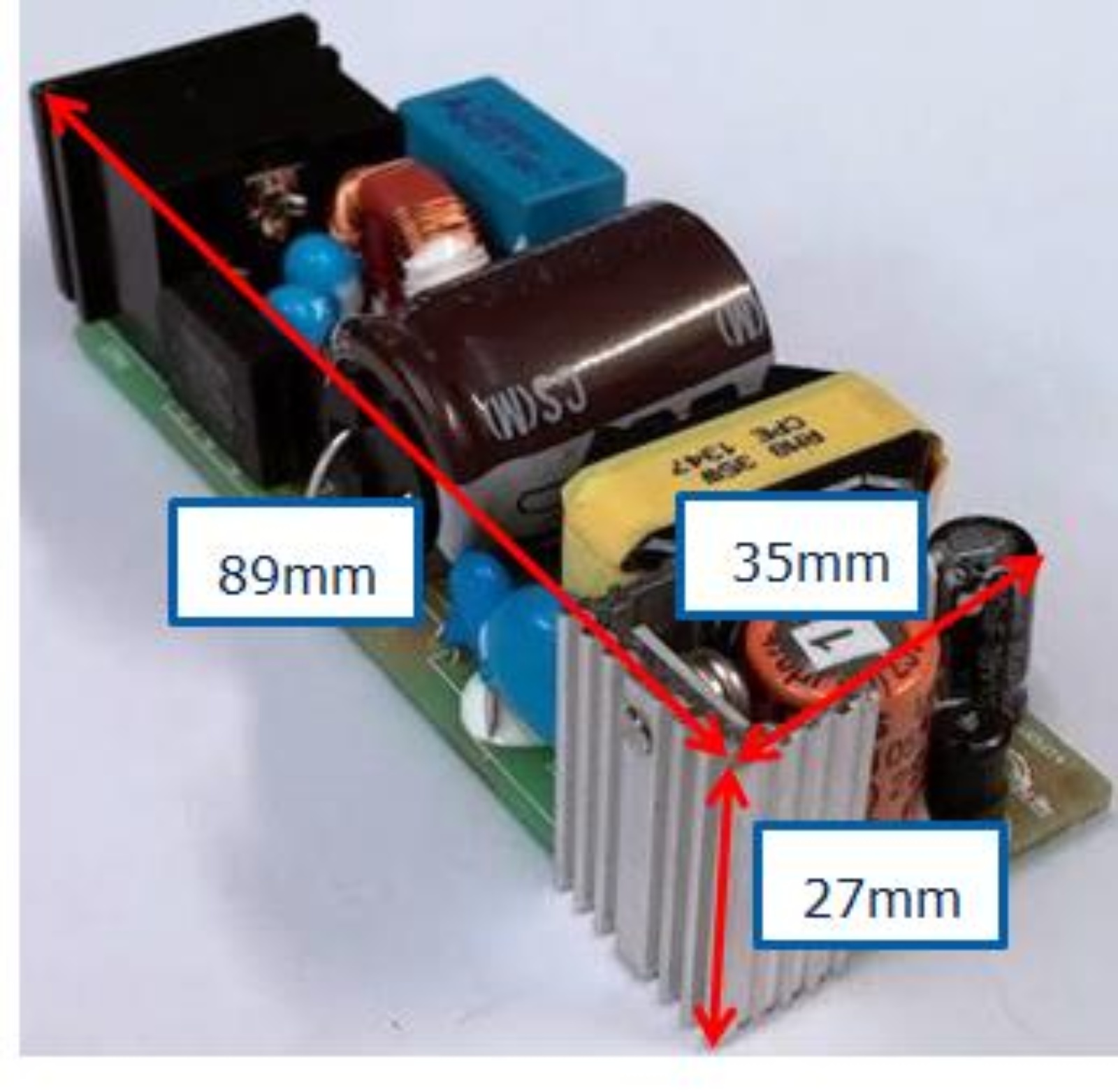

This is a 35W 19.0V/1.84A USB adapter reference design using quasi-resonant PWM integrated circuit ICE2QS03G, CoolMOS™ IPD60R600P6 (DPAK), 2 small signal low voltage MOSFETs 2N7002 and high-speed switching diode BAS21-03W in a short brick shape , peak power is 45W, lasting 2 milliseconds.

Feature description

Achieve 45W peak power for 2 milliseconds (no V _out dip tin)
AC switch overshoot: 1% of nominal V _out
Efficiency > 87% with full load using 0.11Ω cable and V _in =100V
Input standby power <100mW when no load

Advantage

Short brick adapter for easy portability and storage
Introducing DPAK into adapter design

Potential applications

adapter
