STM32G0B1CBT6 UCPD Development Board

What is STM32 UCPD?
STM32 UCPD (USB Type-C / USB Power Delivery) is a controller integrated into an STM32 microcontroller that supports the USB Type-C interface and the USB Power Delivery protocol. Its main functions include:


USB Type-C connectivity: Supports USB Type-C interface identification and connection management, ensuring devices can correctly identify the type and orientation of the connected cable.


Power Delivery: Supports the USB PD protocol, allowing devices to negotiate voltage and current with the power adapter for more efficient charging and power transfer.


Multiple power profiles: Multiple power profiles can be configured to suit the needs of different devices.


Hardware protection: Improves system safety through built-in overcurrent, overvoltage, and short-circuit protection.


Low-power mode: UCPD can operate in standby mode, reducing power consumption.


By using the STM32's UCPD functionality, developers can easily implement USB Type-C and PD functions, improving device compatibility and charging efficiency.

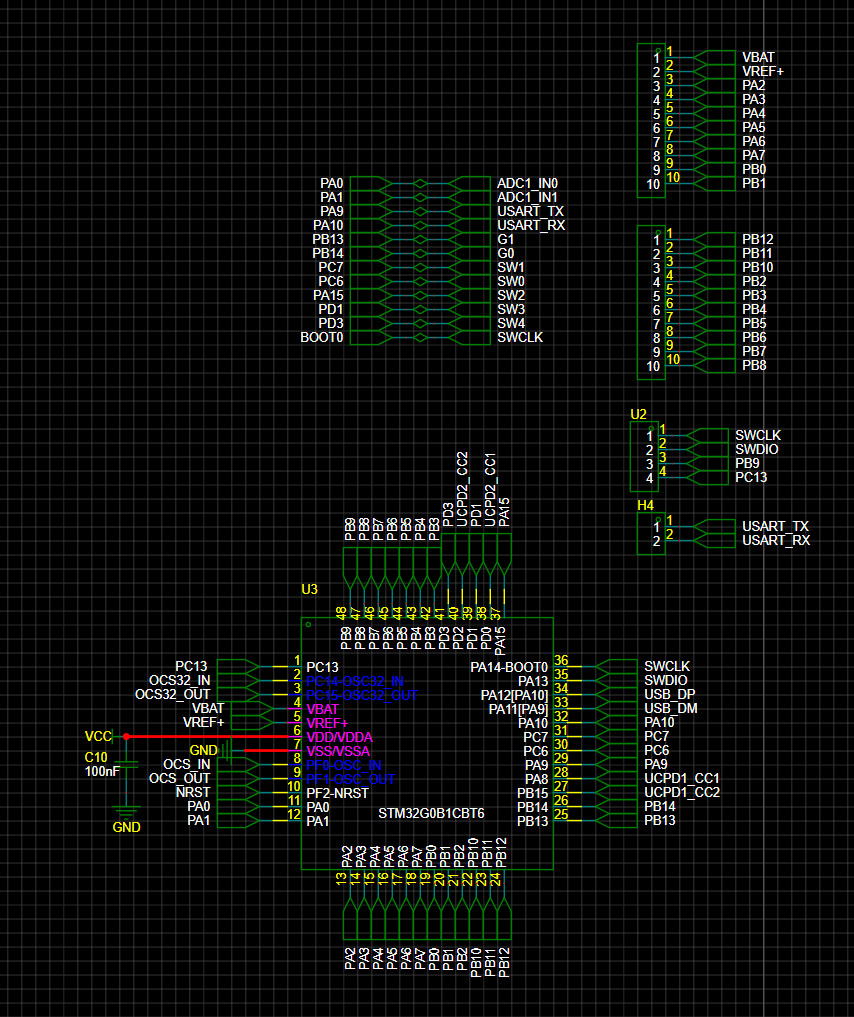

Main MCU

core:
ARM Cortex-M0+ core with a clock speed of up to 64 MHz, featuring low power consumption and high efficiency.
Storage:
64 KB Flash memory for storing program code.
20 KB SRAM provides sufficient runtime data storage space.
Peripherals:
ADC: A multi-channel 12-bit ADC for analog signal acquisition.
USART, SPI, I2C: Multiple communication interfaces supporting flexible connection to external devices.
GPIO: Abundant general-purpose input/output pins supporting various application needs.
Timers: Multiple timers and PWM functions suitable for time-sensitive applications.
Power Consumption:
Supports multiple low-power modes, suitable for battery-powered applications such as IoT devices.
Package:
LQFP (32 pins), suitable for miniaturized designs.

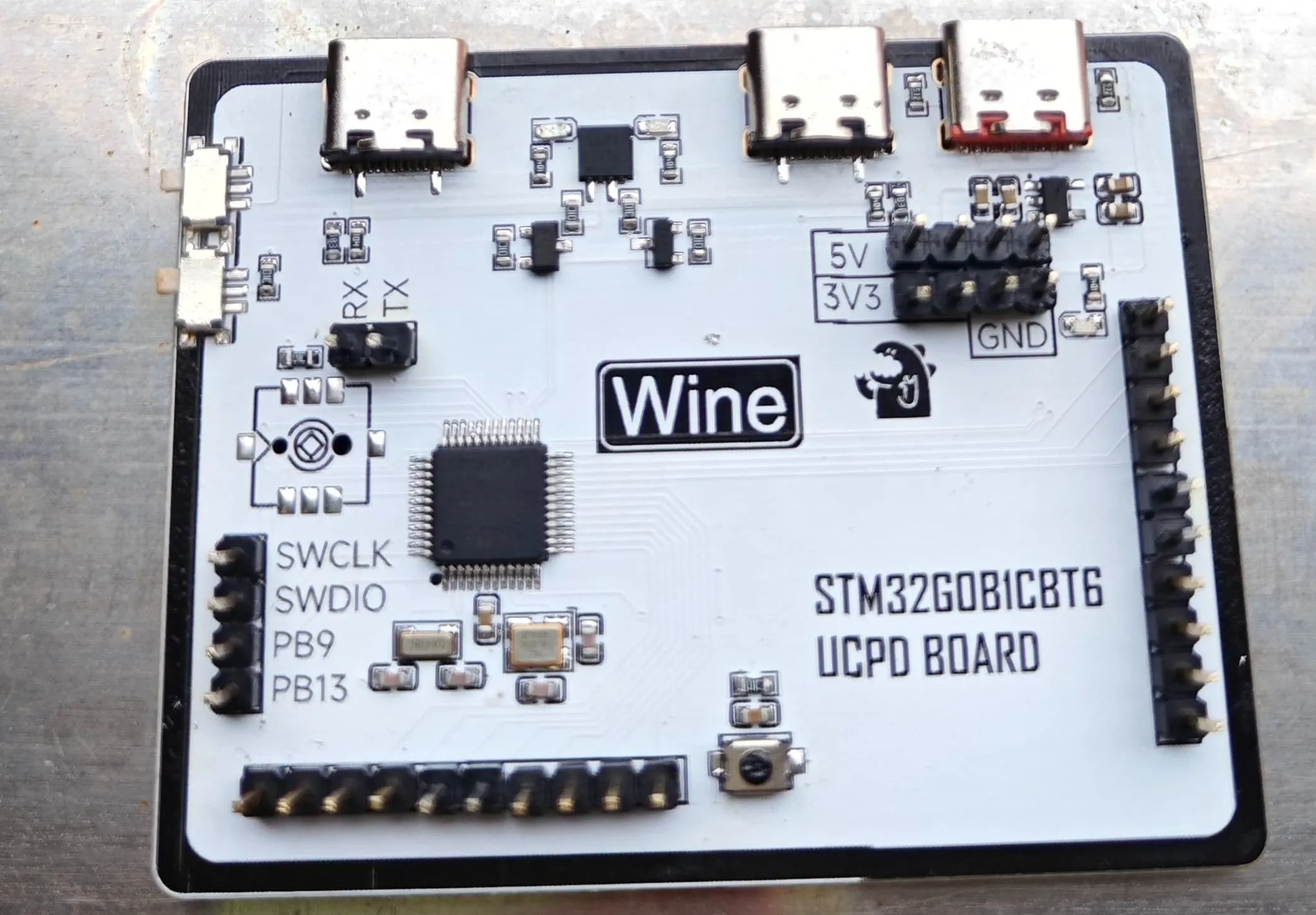

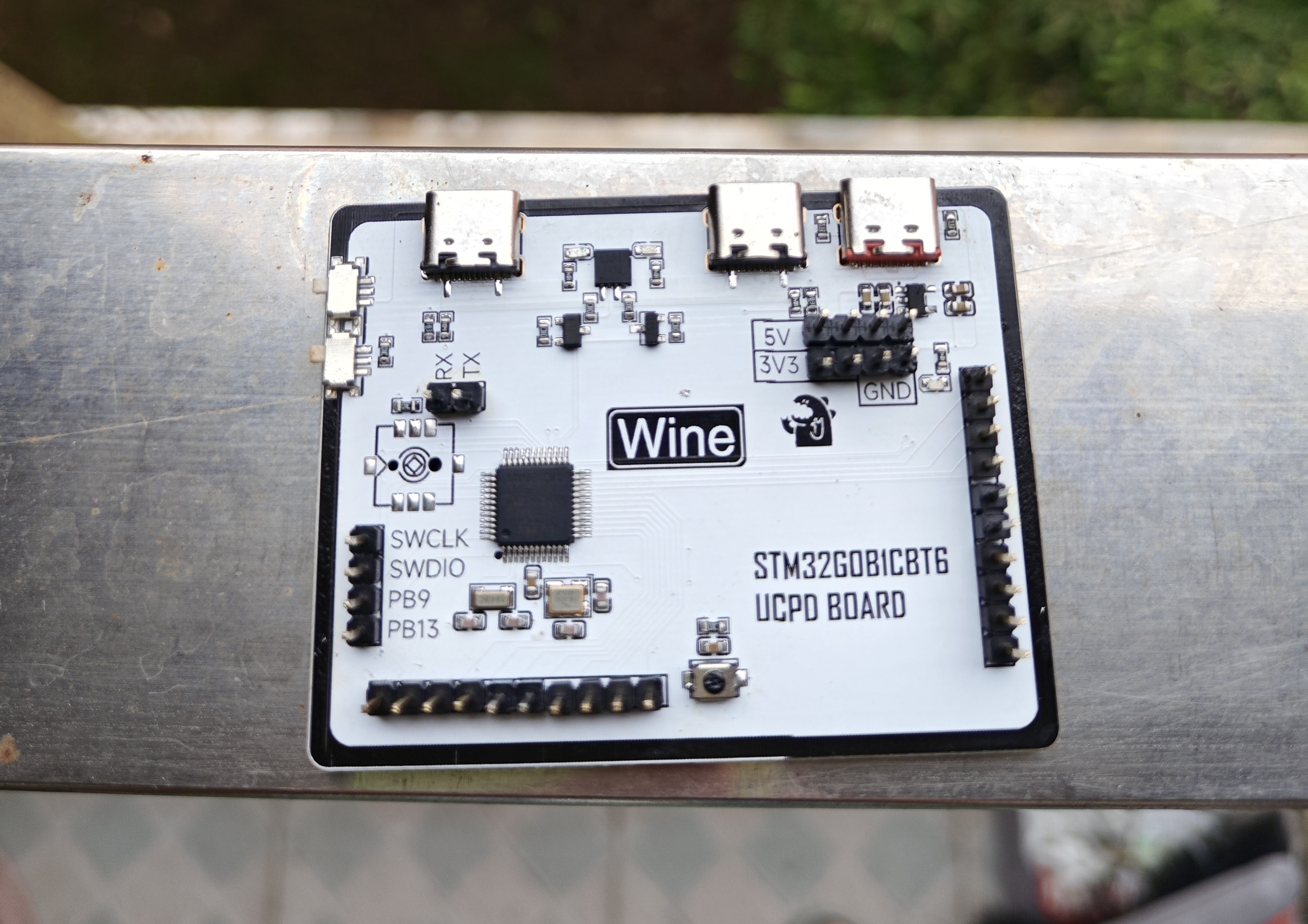

Development Board:
This development board measures 65mm x 50mm, featuring a compact and convenient design with a modern and aesthetically pleasing appearance. Key features include:

Abundant Interfaces: All I/O pins are exposed, including 20 GPIO pins, a pair of serial ports, and two USB Type-C interfaces (each equipped with an ADC), ensuring connectivity to various peripherals.
Convenient Power Supply and Control: Includes a power supply interface, a reset button, a boot switch, and a five-way switch for user convenience.
High-frequency crystal oscillators: Onboard 25 MHz and 32.768 kHz crystal oscillators provide a stable clock source.
Flexible power supply: Supports 5V and 3.3V power supply to adapt to various application scenarios. I designed this development

board

to learn UCPD, and I'm still researching it. I'll release the code later, so please follow me for now.
