Screen Adapter Board - Compatible with Taishanpai

Overview

This project introduces
a collection of screen adapter boards compatible with the Taishanpai Rk3566 development board, and will be updated periodically. When using them, pay attention to the maximum backlight current and interface orientation!
Open source documentation: Currently, the documentation for each screen is attached to the project file; it will be compiled and uploaded to Gitee later.

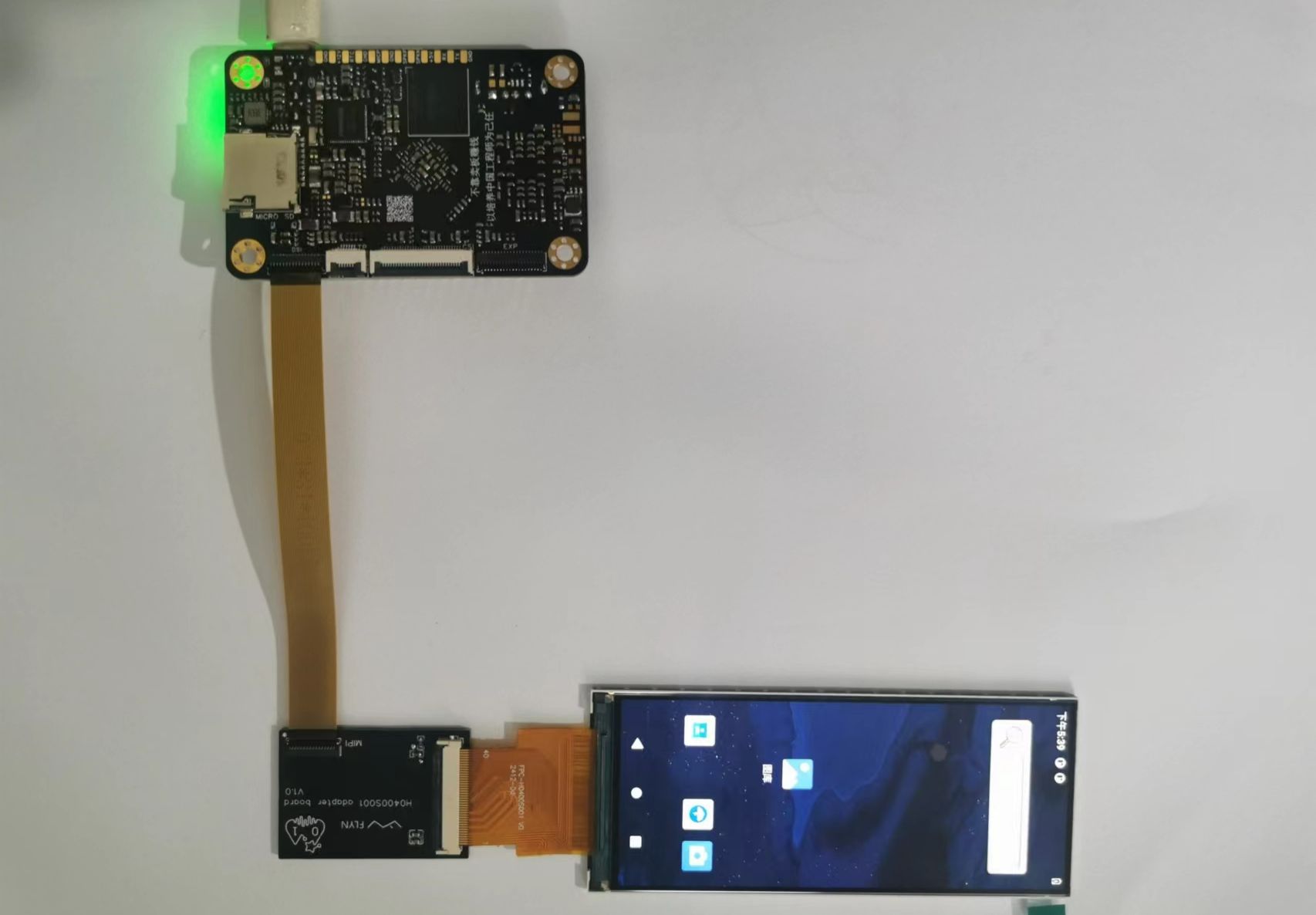

The H0400S001
is a 4-inch, 400x960 resolution rectangular screen using a MIPI interface.
PCB Project Name: H0400S001
Documentation Folder Name: H0400S001
Features:

Content
Parameters

Dimensions :
4-inch

module Dimensions:
42.9(H) × 102.08(V) × 1.58(T) mm

Interface:
MIPI or RGB + 3 SPI

Maximum Backlight Current:
20 mA

Attachment Files Description

H0400S001.zip

PDF_Screen Adapter Board - Compatible with Taishanpai.zip

Altium Screen Adapter Board - Compatible with Taishanpai (zip file)

PADS Screen Adapter Board - Compatible with Taishanpai.zip

BOM_Screen Adapter Board-Compatible with Taishanpai.xlsx

95319

FM radio based on STM32F103 driving RDA5807

STM32F103C8T6 microcontroller, FM chip, RDA5807M

Update Log

2024.02.23
First time organizing and open-sourcing this project.
Hardware version V201,
Software version V2.0.0.20231225_Beta.

Microcontroller: STM32F103C8T6. FM chip: RDA5807M.

Product demonstration video:
Bilibili demonstration video (click to watch).
FM radio based on STM32F103C8T8, with volume adjustment, frequency switching, station switching, etc.
The circuit board has a reserved interface for a real-time clock, which will be updated later.

STM32 Radio V2 (V2.0.0.20231225_Beta).zip

PDF_FM Radio Based on STM32F103 Driving RDA5807.zip

Altium_FM Radio Based on STM32F103 and Driving RDA5807.zip

PADS_FM Radio Based on STM32F103 and RDA5807.zip

BOM_FM Radio Based on STM32F103 Driving RDA5807.xlsx
