Offline isolated 3W 5V power supply based on CoolSET™ ICE3RBR4765JG current mode controller

REF-3W-IOT-COOLSET

Overview

3W 5V Flyback 180 to 265VAC

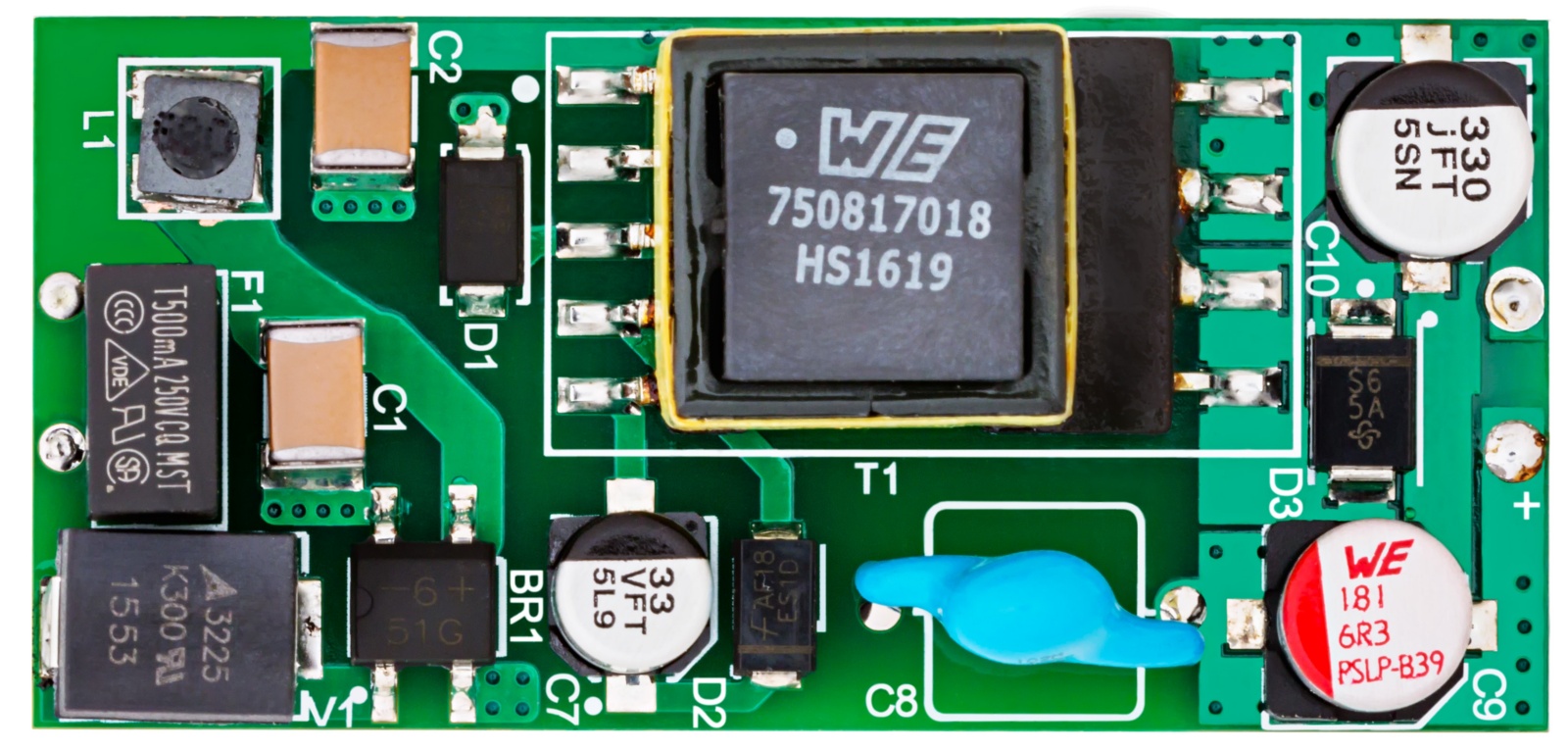

Reference Design An offline isolated 3W 5V power supply based on the CoolSET™ ICE3RBR4765JG current mode controller.

Feature description

CoolSET™ 650V with built-in starting unit and high avalanche capability
Active Burst Mode (ABM)
65kHz internal fixed switching frequency
Built-in soft start
Auto-restart protection modes for overload, open loop, V CC undervoltage, overtemperature and V CC overvoltage
Built-in frequency jitter feature and soft drive for low EMI
BiCMOS technology provides wide VCC range

Advantage

Very low standby power consumption (<13mW)
Low output voltage ripple (<80mVpp)
Small overall size (50mm x 23.5mm x 14 mm (length x width x height)

Potential applications

Applications related to the Internet of Things (IoT)
USB power supply built into wall plug
Smart plug with wireless (with relay) switching
Metering applications
