REF-10W ADAPTER: 10.5W 5.0V USB Adapter Reference Design

REF-10W ADAPTER

Overview

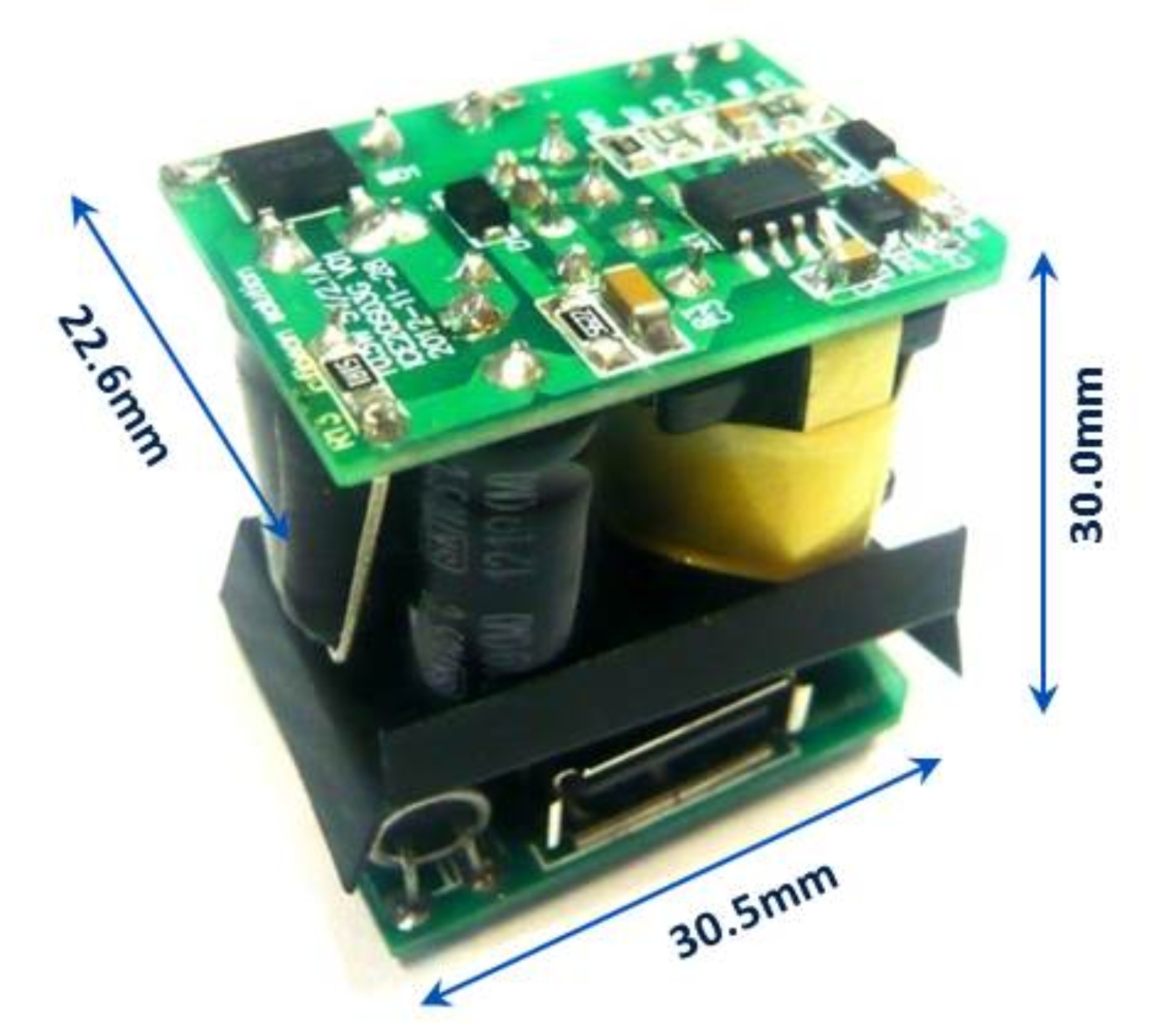

This is a 10.5W 5.0V USB adapter reference design using Infineon's quasi-resonant PWM integrated circuit ICE2QS03G and CoolMOS™ IPU60R950C6 (IPAK), with a small form factor architecture and multiple protection modes to achieve high system reliability.

Feature description

Plug size adapter design
Input standby power <40mW
Average efficiency 80%
Output overshoot/undershoot dynamic load response ±2%

Advantage

Cancel the common mode choke, pass the conducted emission standard EN55022 (CISPR 22) Class B, margin >6dB
