MAXREFDES1123: 80V/5mA high-voltage compact boost power supply using the MAX1523

The MAXREFDES1123 is a compact boost power-supply design for high-voltage applications with low currentrequirements where extremely low cost and small sizeare top priorities. This design provides an 80V output and up to 5mA of load current. This power supply is designed specifically to provide a simple application circuit at high voltage and to minimize the size and number of external components, making it ideal for low-cost consumer electronics applications.

This design is centered around the MAX1523 simple SOT23 boost controller. The design is tested at 5V nominal voltage input. The output voltage is within 1% error margin.

Key Features

• Small Size (134mm²)
• 80V/5mA Output
• Low Quiescent Current (25μA typ)
• Pin-Selectable Maximum Duty Factor
• Internal Soft-Start and Short-Circuit Protection
• Discontinuous Conduction Mode (DCM)

This board is not available for purchase.

Designed, Built, Tested

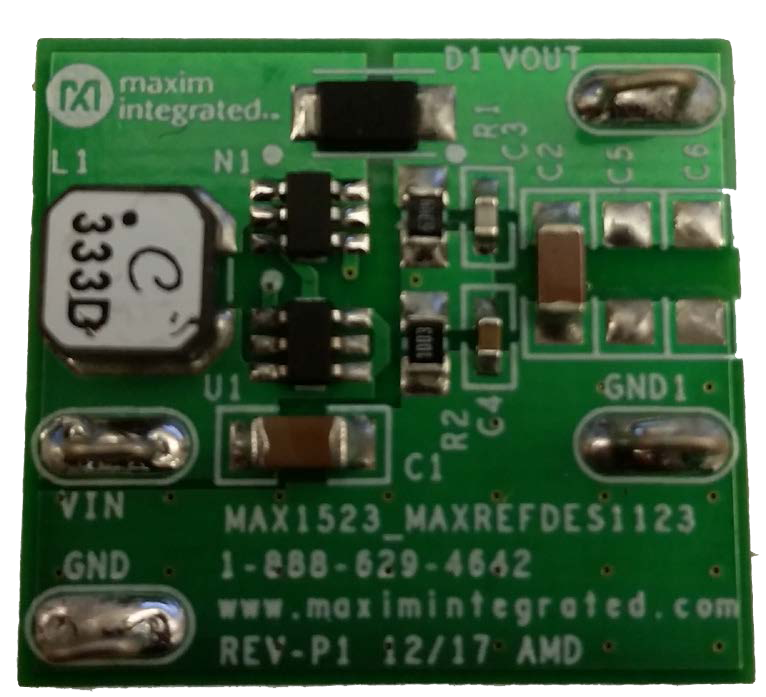

This document describes the hardware shown in Figure 1. It provides a detailed systematic technical guide for designing a boost controller using the MAX1523 for high voltage, low current, and small size. Refer to the MAX1523 IC data sheet for device operation details. The power supply has been built and tested, details of which follow later in this document.

Design Resources
