TLA2528-Eval

Overview

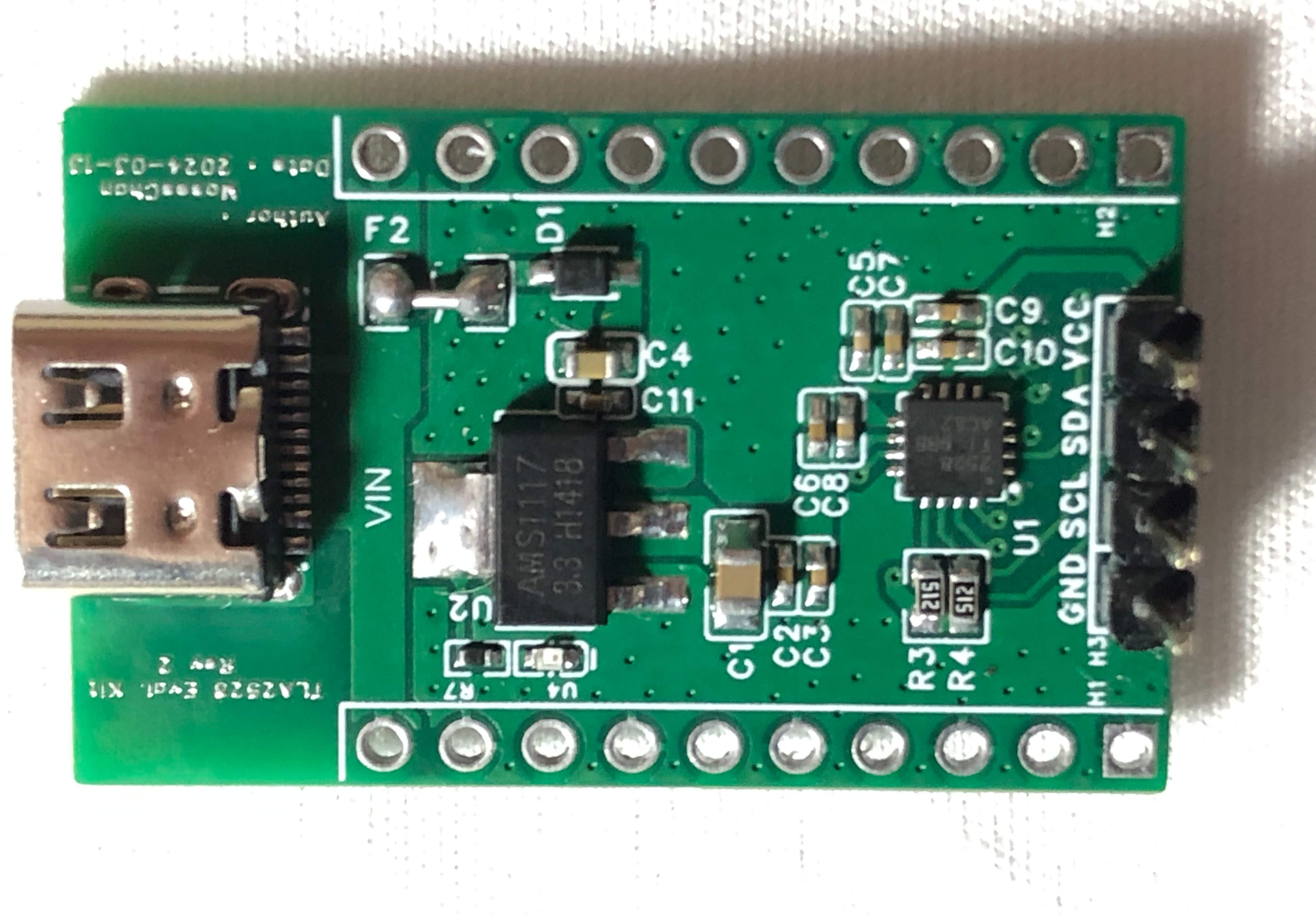

This is an Evaluation Module for the TLA2528 Integrated Chip from Texas Instruments. ( This board has been verified by our team of professionals.)
5V power supply can be provided by USBC or from the external ribbon pin.
All GPIO/ADC channel pins have been drawn through the 2.54mm ribbon pin.
You can experiment with the TLA2528 IC by establishing connections between your microcontroller board and the I2C Interface of the Evaluation Module.
The address of the TLA2528 is set by R5 and R6 located on the bottom side of the board, for more information, please refer to the TLA2528 datasheet.
