Weld inspection device

Overview

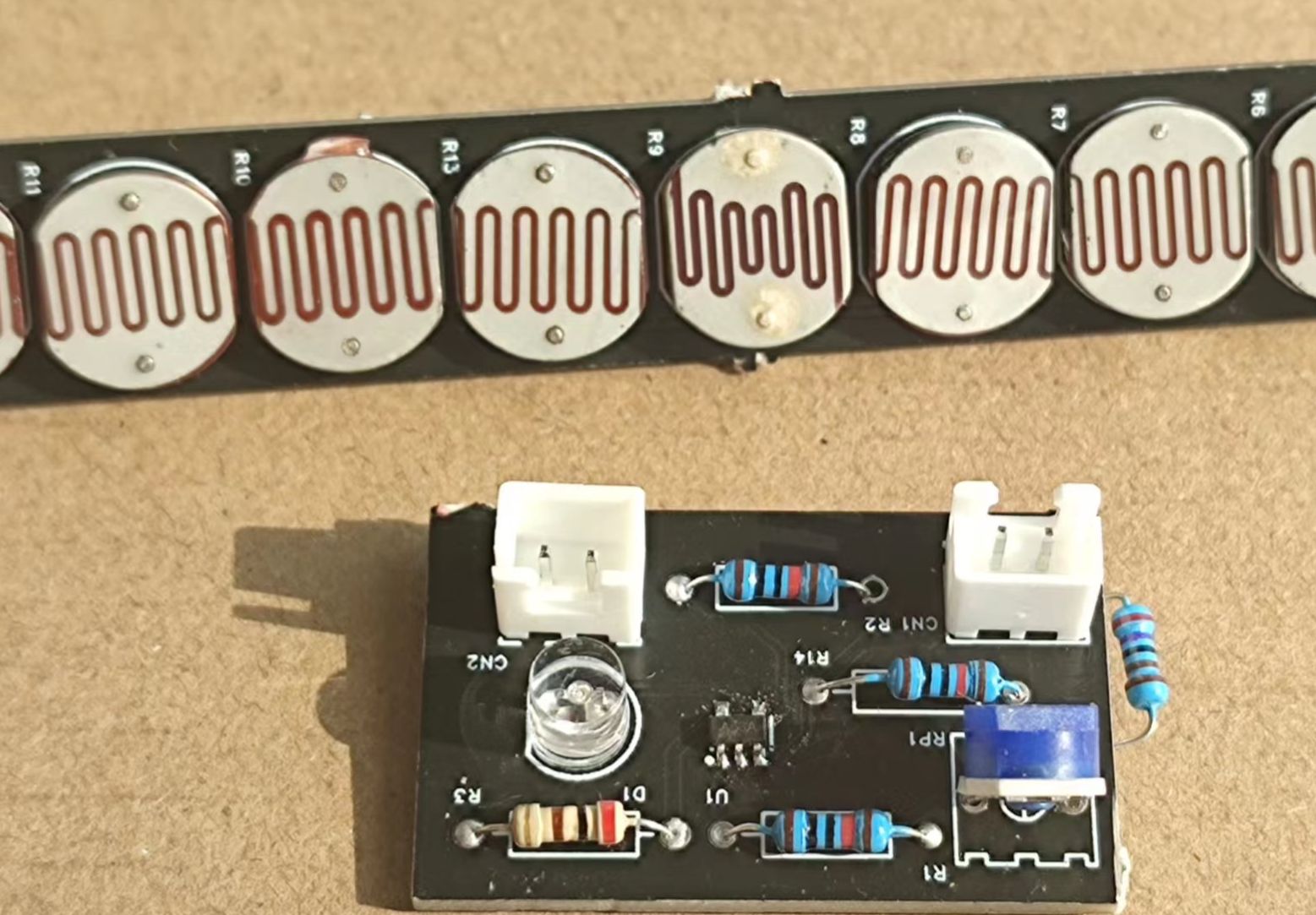

This circuit is designed to solve the problem of inspecting the quality of pipe welds. In use, it consists of a high-sensitivity light probe receiving matrix composed of multiple large-sized photoresistors. It is inspected in the pipe with a traction rope. When a weld with light leakage is encountered, the LED light on the main unit outside will light up as an alarm.
