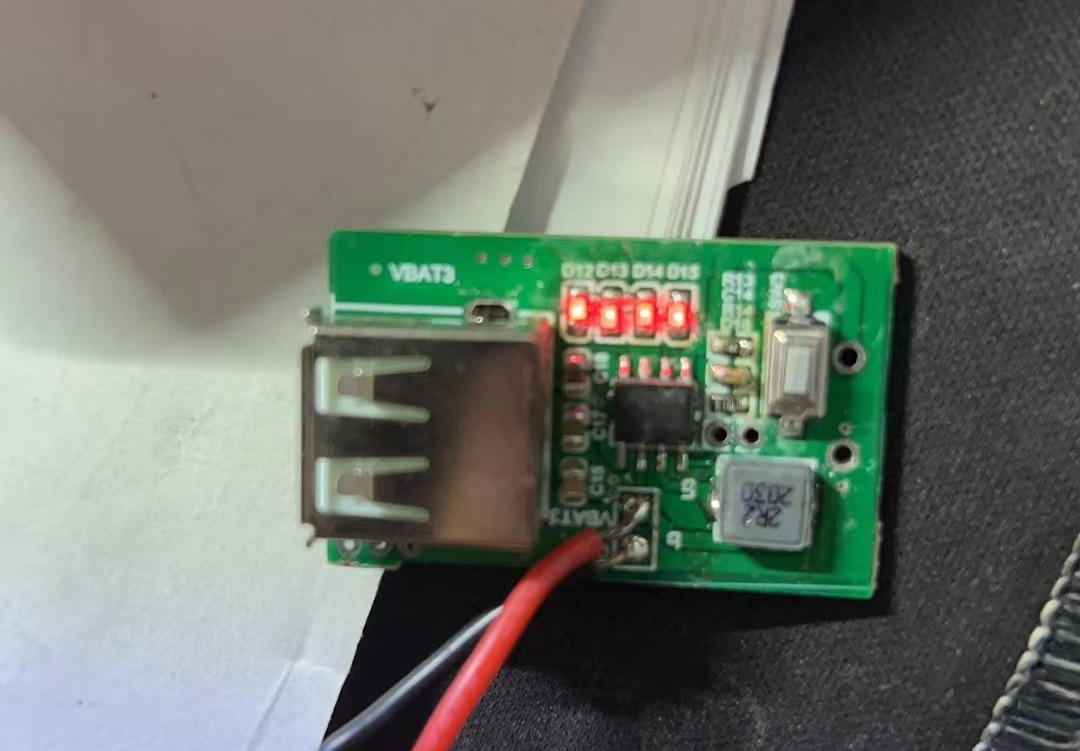

SP4533 power supply

Overview

Multiple Safety Protections: Built-in charging and discharging power MOSFETs, with a fixed charging current of 1A. Features multiple safety protection functions including temperature compensation, over-temperature protection, overcharge and over-discharge protection, output overvoltage protection, output overload protection, and output short-circuit protection to ensure the safety of the chip and lithium-ion battery.
Power Detection and LED Indication: Detects power level and provides LED indication.
Intelligent Temperature Control and Over-Temperature Protection: Built-in intelligent temperature control with over-temperature protection.
Integrated Output Overvoltage Protection, Short-Circuit Protection, and Overload Protection: Multiple protections ensure the safety of the chip and lithium-ion battery.
Supports Trickle Charge and Zero-Voltage Charging: Supports trickle charge mode, allowing charging after the battery is fully discharged.
Simple Application Circuit: Requires only a few components for charging and discharging management.
Supports Flashlight Output: In addition to basic charging and discharging management, it also supports flashlight output functionality.

Design Files

All reference designs on this site are sourced from major semiconductor manufacturers or collected online for learning and research. The copyright belongs to the semiconductor manufacturer or the original author. If you believe that the reference design of this site infringes upon your relevant rights and interests, please send us a rights notice. As a neutral platform service provider, we will take measures to delete the relevant content in accordance with relevant laws after receiving the relevant notice from the rights holder. Please send relevant notifications to email: bbs_service@eeworld.com.cn.

It is your responsibility to test the circuit yourself and determine its suitability for you. EEWorld will not be liable for direct, indirect, special, incidental, consequential or punitive damages arising from any cause or anything connected to any reference design used.
